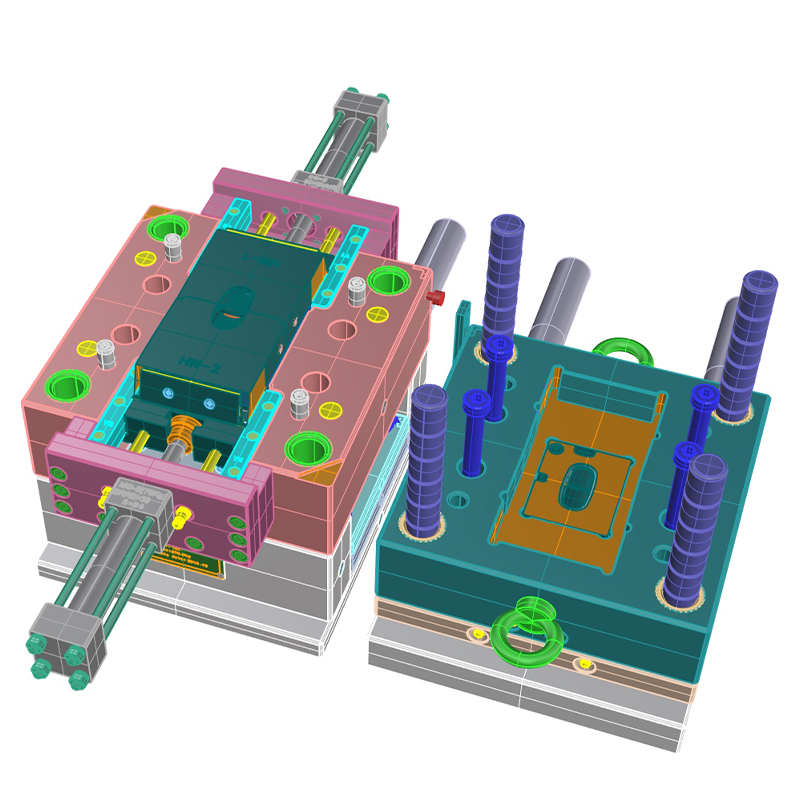

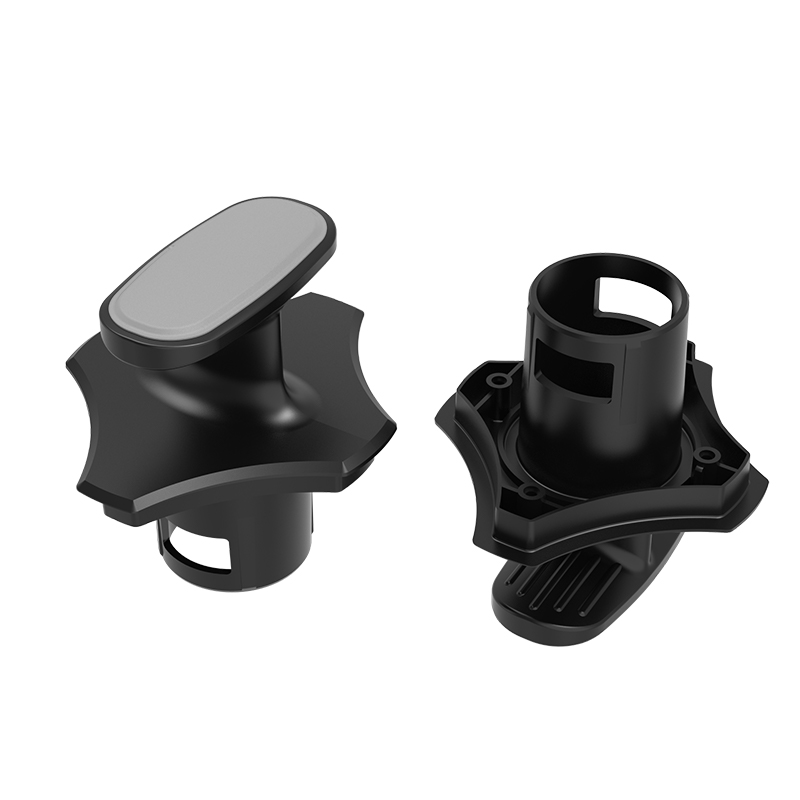

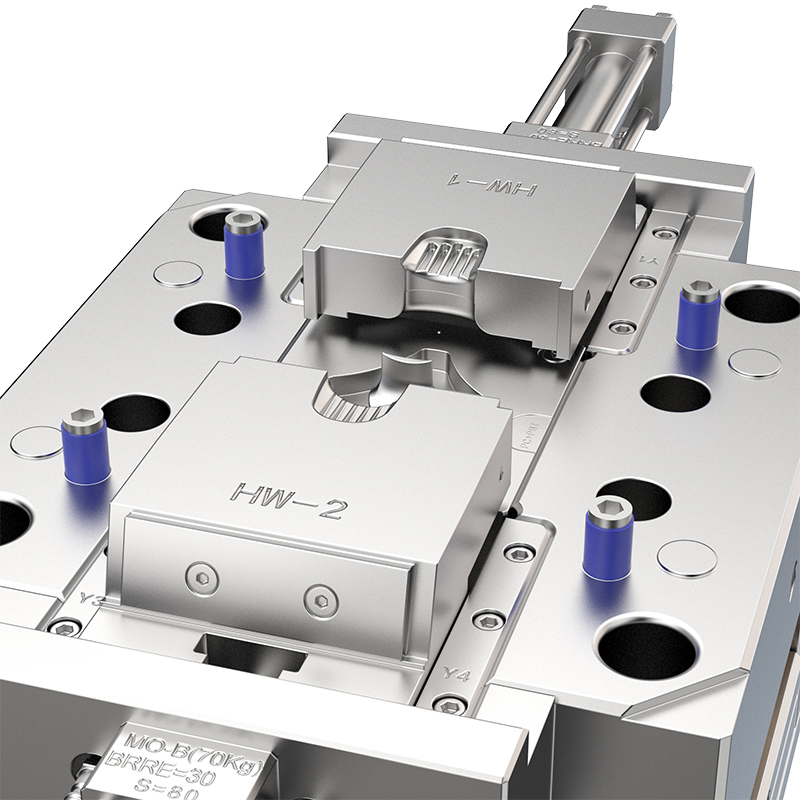

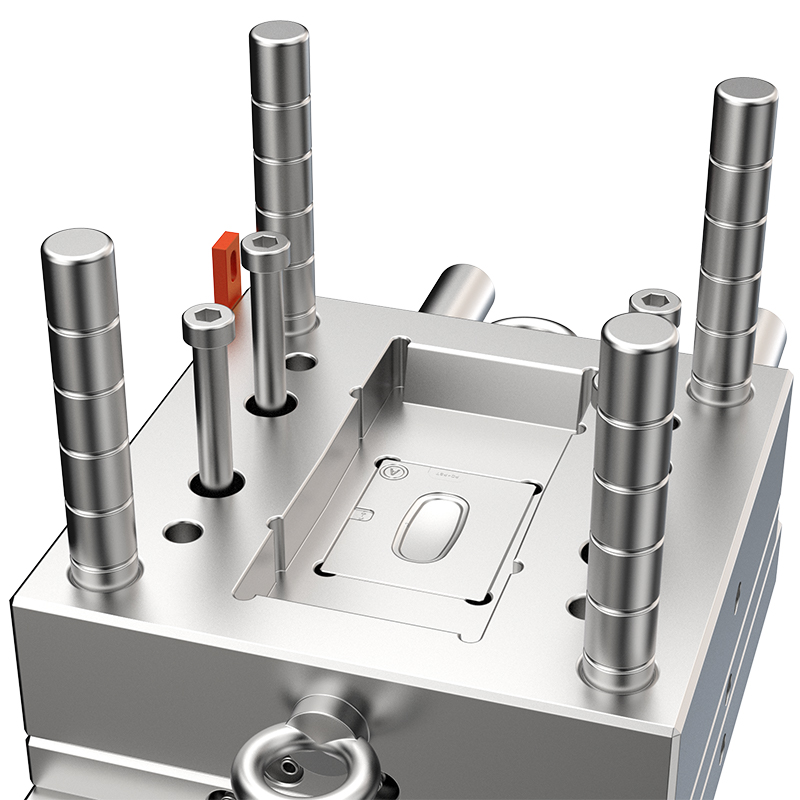

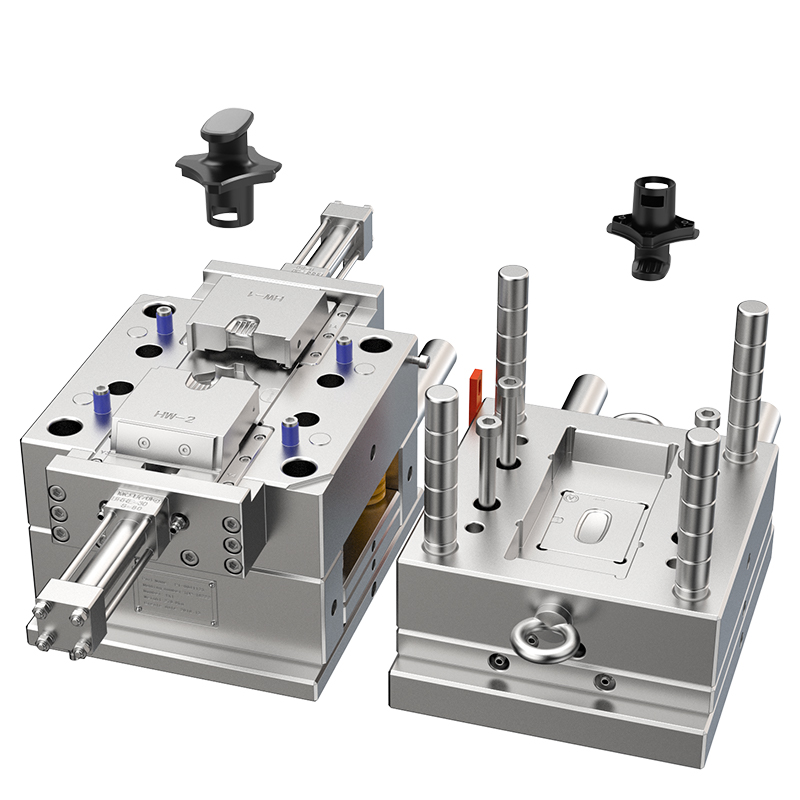

Electronic product casing mold
Crafted from premium imported steel, this electronic product shell mold boasts an ultra-long lifespan and exceptional wear resistance. Designed specifically to accommodate a variety of high-end electronic product materials, including aluminum alloy,Mold casting , stainless steel, and high-strength plastics, the mold delivers outstanding performance, capable of perfectly forming complex structures with unparalleled detail. Its exquisite craftsmanship and superior performance ensure that every batch of products meets the highest quality standards, making it an ideal choice for enhancing production efficiency and product value.
- Overview
- Description
- Details
- Inquiry
- Related Products
Choose the steel material of the mold according to the characteristics of the plastic
Plastic Material | Mold Request | Mold Life | Material Recommend | Application hardness | Polishing | |||
Corrosion resistance | Wear-resistant | Tensile strength | AISI | YE Brand | ||||
ABS | None | Low | High | Long | P20 | 2311 | 48~50HRC | A3 |
Short | P20+Ni | 2738 | 32~35HRC | B2 | ||||
PVC | High | Low | Low | Long | 420ESR | 2316ESR | 45~48HRC | A3 |
Short | 420ESR | 2083ESR | 30~34HRC | A3 | ||||
HIPS | None | Low | Mid | Long | P20+Ni | 2738 | 38~42HRC | A3 |
Short | P20 | 2311 | 30~34HRC | B2 | ||||
GPPS | None | Low | Mid | Long | P20+Ni | 2738 | 37~40HRC | A3 |
Short | P20 | 2311 | 30~34HRC | B2 | ||||
PP | None | Low | High | Long | P20+Ni | 2738 | 48~50HRC | A3 |
Short | P20+Ni | 2738 | 30~35HRC | B2 | ||||
PC | None | Mid | High | Long | 420ESR | 2083ESR | 48~52HRC | A2 |
Short | P20+Ni | 2738Nitriding | 550~720HV | A3 | ||||
POM | High | Mid | High | Long | 420MESR | 2316ESR | 45~48HRC | A3 |
Short | 420MESR | 2316ESR | 30~35HRC | B2 | ||||
SAN | Mid | Mid | High | Long | 420ESR | 2083ESR | 48~52HRC | A2 |
Short | 420ESR | 2083ESR | 32~35HRC | A3 | ||||
PMMA | Mid | Mid | High | Long | 420ESR | 2083ESR | 48~52HRC | A2 |
Short | 420ESR | 2083ESR | 32~35HRC | A3 | ||||
PA | Mid | Mid | High | Long | 420ESR | 2316ESR | 45~48HRC | A3 |
Short | 420ESR | 2316ESR | 30~34HRC | B2 | ||||
Mold Steel VS Imported Steel
Mold Life | Under 100K | 100K~500K | 500K~1M | Over 1M |
Insert Steel | P20|PX5 738 | NAK80 718H | SKD61(Heat Treatment) TDAC(DH2F) | AIAS420 S136 |
Insert Hardness | （30±2）HRC | （38±2）HRC | （52±）HRC | (60±2)HRC |
Mold Base Steel | S55C | S55C | S55C | S55C |
Mold Base Hardness | （18±2）HRC | （18±2）HRC | （18±2）HRC | （18±2）HRC |
